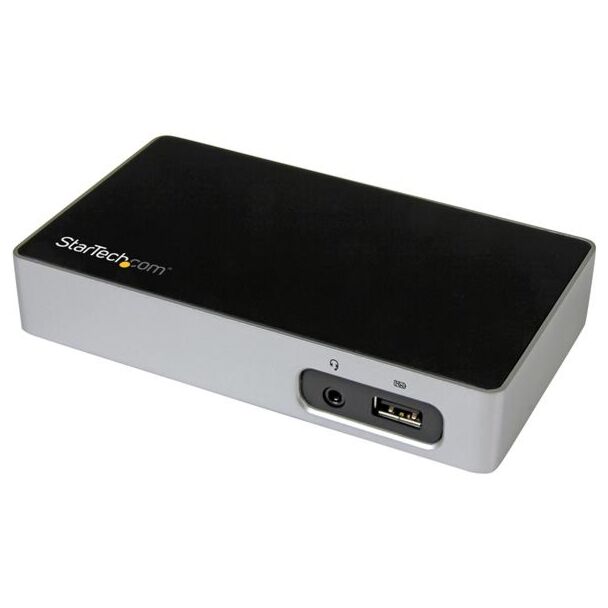

StarTech USB3VDOCKD DVI Docking Station for Laptops - USB 3
Model
USB3VDOCKD
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
$161.80
DVI Docking Station for Laptops - USB 3.0 - Universal Laptop Docking Station - DVI Laptop Dock for Hot Desks - Compact Housing - Perfectfor BYOD and CYOD - Supports Fast-Charge
Technical Specifications
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 3 Years | |
| HARDWARE | ||
| 4K Support | No | |
| Bus Type | USB 3.0 | |
| Chipset ID | DisplayLink - DL-3700 VIA/VLI - VL812 |
|
| Displays Supported | 1 | |
| Fast-Charge Port(s) | Yes | |
| Industry Standards | USB Battery Charging Specification Rev. 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0/1.1 |
|
| PERFORMANCE | ||
| Auto MDIX | Yes | |
| Compatible Networks | 10/100/1000 Mbps | |
| Full Duplex Support | Yes | |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
|
| Maximum Digital Resolutions | 2048 x 1152 (DVI - Single Display) Lower resolutions are also supported |
|
| Type and Rate | USB 3.0 - 5 Gbit/s | |
| UASP Support | Yes | |
| CONNECTOR(S) | ||
| Connector Type(s) | 1 - DVI-I (29 pin) Female | |
| 1 - USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female | ||
| 2 - USB Type-A (9 pin) USB 3.0 Female | ||
| 1 - RJ-45 Female | ||
| 1 - 3.5 mm Mini-Jack (4 Position) Female | ||
| 1 - USB Type-B (9 pin) USB 3.0 Female | ||
| 1 - Security Lock Slot Female | ||
| SOFTWARE | ||
| OS Compatibility | Windows® 7, 8, 8.1, 10 Mac OS® 10.8 to 10.12, 10.14 Chrome OS™ |
|
| SPECIAL NOTES / REQUIREMENTS | ||
| Note | If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included) | |
| USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5 Gbps | ||
| Extended displays are currently only supported with DisplayLink-based products on macOS 10.11 to 10.13.3. This may change in future versions. | ||
| The DVI-I connector supports DVI-I signaling (digital and analog) | ||
| System and Cable Requirements | USB-enabled computer with an available USB 3.0 port | |
| INDICATORS | ||
| LED Indicators | 1 - Link (Green) | |
| 1 - Activity (Amber) | ||
| POWER | ||
| Center Tip Polarity | Positive | |
| Input Current | 0.8 A | |
| Input Voltage | 100 ~ 240 AC | |
| Output Current | 4 A | |
| Output Voltage | 5 DC | |
| Plug Type | M | |
| Power Consumption (In Watts) | 20 | |
| Power Source | AC Adapter Included | |
| ENVIRONMENTAL | ||
| Humidity | 20~80% RH | |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) | |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Color | Black & Silver | |
| Enclosure Type | Plastic | |
| Product Height | 1 in [26 mm] | |
| Product Length | 5.5 in [139 mm] | |
| Product Weight | 5.3 oz [151 g] | |
| Product Width | 3.1 in [79 mm] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 19.4 oz [550 g] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - laptop docking station | |
| 1 - 3.6 ft [1092 mm] USB 3.0 host cable | ||
| 1 - universal power adapter (NA/JP, EU, UK, ANZ) | ||
| 1 - instruction manual | ||
