Startech ITB20D3250 DC Power Adapter International Ext.
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |

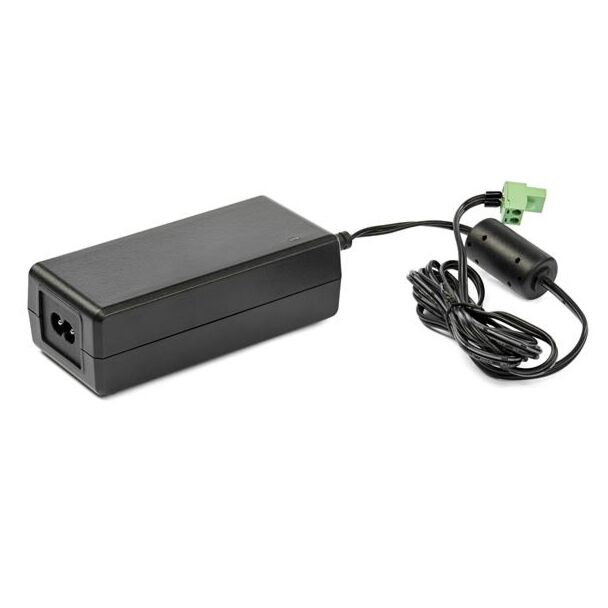

This universal DC power adapter has been designed as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
Compatible USB 3.0 Hubs
10-Port Industrial USB 3.0 Hub with External Power Adapter - ESD & 350W Surge Protection (HB30A10AME)
10-Port Industrial USB 3.0 Hub with ESD & 350W Surge Protection (ST1030USBM)
7-Port Industrial USB 3.0 Hub with External Power Adapter - ESD & 350W Surge Protection (HB30A7AME)
7-Port Industrial USB 3.0 Hub with ESD & 350W Surge Protection (ST7300USBME)
4-Port Industrial USB 3.0 Hub with ESD Protection (ST4300USBM)
Compatible USB 2.0 Hubs:
7-Port Industrial USB 2.0 Hub ESD Protection & 350W Surge Protection (HB20A7AME)
7-Port Industrial USB 2.0 Hub with ESD & 350W Surge Protection (ST7200USBM)
4-Port Industrial USB 2.0 Hub with ESD Protection & 350W Surge Protection (HB20A4AME)
4-Port Industrial USB 2.0 Hub with ESD Protection (ST4200USBM)
The external terminal power adapter can also be used with any other devices that can support 20V power supply including a variety of StarTech.com Ethernet Switches and Serial Adapters.
The ITB20D3250 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Technical Specifications
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 1 Year | |
| POWER | ||
| Input Current | 1.4A Max. | |
| Input Voltage | 110V-240V AC | |
| Output Current | 3.25A | |
| Output Voltage | 20V DC | |
| Plug Type | Terminal Block (2 Wire) | |
| Terminal Block (3 Wire) | ||
| Power Consumption (In Watts) | 65W | |
| ENVIRONMENTAL | ||
| Humidity | 20% ~ 80% RH | |
| Operating Temperature | + 0ºC ~ + 40ºC | |
| Storage Temperature | - 20 ºC ~ + 80ºC | |
| PHYSICAL CHARACTERISTICS | ||
| Product Height | 1.5 in [3.8 cm] | |
| Product Length | 12.6 in [31.9 cm] | |
| Product Width | 2.1 in [5.3 cm] | |
| Weight of Product | 0.7 lb [0.3 kg] | |
| PACKAGING INFORMATION | ||
| Package Height | 55.000 | |
| Package Length | 166.000 | |
| Package Width | 242.000 | |
| Shipping (Package) Weight | 810.000 | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - Universal 65W Power Adapter | |
| 4 - Power Cords (NA/JP, EU, UK, ANZ) | ||
| 1 - Two Conductor Terminal Block Connector (Attached) | ||
| 1 - Three Conductor Terminal Block Connector | ||
| 1 - Quick Start Guide | ||
