StarTech ICUSB2328I 8 Port USB to DB9 RS232 Serial Adapter

Model
ICUSB2328I
Be the first to review this product
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$330.00
Add to Wish List Add to Compare
8 Port USB to DB9 RS232 Serial Adapter Hub Industrial DINRail and Wall Mountable - USB to RS 232 Serial Adapter 8-Port - USB to Serial Converter
StarTech
065030848978

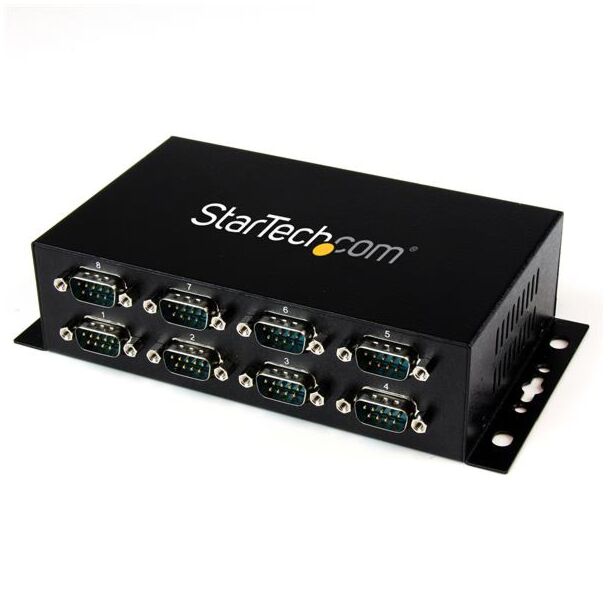

StarTech ICUSB2328I 8 Port USB to DB9 RS232 Serial Adapter

The ICUSB2328I Industrial 8-Port USB to Serial Hub with DIN Rail Clips converts a single USB port into eight RS232 serial ports, enabling you to connect to, monitor and control your serial devices.

Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.

This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the USB serial hub ports.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
  • Connect, monitor and control industrial/automotive sensors and equipment
  • Connect bar code scanners, receipt printers and other point of sale devices
  • Connect a satellite receiver, serial modem, or PDA with serial sync
  • Connect and program LED and Digital signage boards with serial communication ports



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Bus Type USB 2.0
  Chipset ID FTDI - FT232RL
  Interface Serial
  Port Style External Hub
  Ports 8
PERFORMANCE
  Data Bits 7, 8
  FIFO 4096 byte Transmit and Receive
  Max Baud Rate 921.6 Kbps
  Maximum Data Transfer Rate 921.6 Kbps
  MTBF 146,300 Hours
  Parity Odd, Even, Mark, Space, None
  Serial Protocol RS-232
  Stop Bits 1, 2
CONNECTOR(S)
  External Ports 1 - USB B (4 pin) Female
    8 - DB-9 (9 pin, D-Sub) Male
SOFTWARE
  OS Compatibility Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS® 10.6 to 10.14
Linux 2.4.x to 4.11.x LTS Versions only
INDICATORS
  LED Indicators 1 - Power
POWER
  Input Current 250 mA
  Input Voltage 5 DC
  Plug Type M
  Power Source USB-Powered
ENVIRONMENTAL
  Humidity 5~95% RH
  Operating Temperature 0°C to 55°C (32°F to 131°F)
  Storage Temperature -20°C to 85°C (-4°F to 185°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Steel
  Product Height 1.7 in [43.2 mm]
  Product Length 7.1 in [180 mm]
  Product Weight 19.5 oz [553 g]
  Product Width 3.9 in [100 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 30.4 oz [862 g]
WHAT'S IN THE BOX
  Included in Package 1 - USB to RS-232 Serial Adapter
    1 - DIN rail kit
    1 - 6 ft USB A to B cable
    1 - Driver CD
    1 - Instruction Manual
