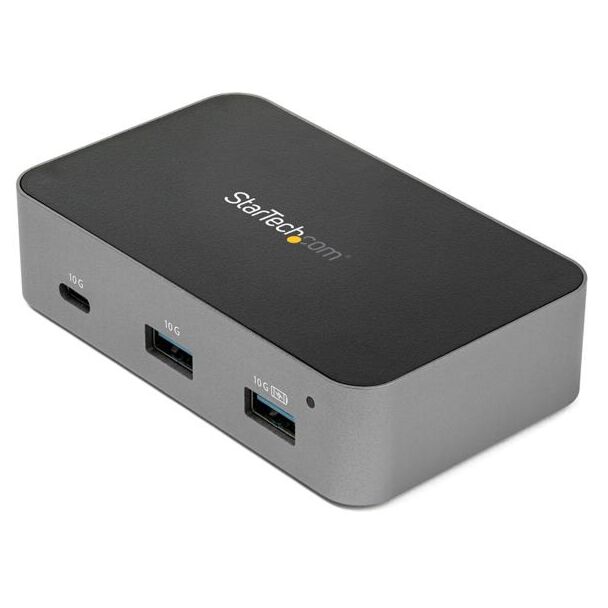

Startech HB31C2A1CGS 3-Port USB-C Hub with LAN Port 10 Gbps Powered
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
Expand the connectivity of your USB-C laptop with this new generation USB-C 3.1 Gen 2 hub offering 10Gbps supporting greater bus bandwidth to connected devices and faster data transfer speeds. This self-powered 3-Port USB-C hub plugs into the USB Type-C™ or Thunderbolt™ 3 port on your device, adding one LAN port, one USB-C port, and two USB-A ports, so you can quickly connect more USB devices.
Gigabit Network Access
For faster and more consistent network connections, the USB 3.1 Gen 2 hub’s integrated Gigabit Ethernet port provides wired network access that is fully compatible with IEEE 802.3/u/ab standards. The GbE port also supports Wake-on-LAN (WoL), so you can remotely wake your computer over your network.
Easy Setup & Installation
This compact, lightweight USB-Type-C hub is a convenient and compact addition to your laptop setup. The hub is self-powered and includes a universal power adapter to provide better support of USB devices, such as external storage, that may draw more power.
The USB-C host cable is detached and with an extended length of 3.3’ (1 m), it provides more flexibility for longer reach connection requirements and plug and play installation.
For added flexibility and security, the mini hub features mounting holes to work with StarTech.com dock mounts such as SSPMSVESA or SSPMSUDWM.
Connect USB-C & USB-A Peripherals
With ports for both USB-C and USB-A peripherals, this hub is backwards compatible supporting both legacy and new USB devices. It features one always-on USB-A fast charge port which supports two modes of operation:
- Data transfer and charging when the laptop is connected and on
- Dedicated or hostless charging which provides a higher charging current, when the host is off, on standby, or disconnected
You can connect video capture devices, portable flash drives, and external hard drives, with fast data transfer speeds of up to 10 Gbps. This 3 port USB Type-C hub enhances your productivity, giving you the connections you need while you work or travel.
The IT Pro’s Choice Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
HB31C2A1CGS is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Technical Specifications
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 2 Years | |
| HARDWARE | ||
| Bus Type | USB 3.1 Gen 2 | |
| Chipset ID | Realtek - RTL5428 Realtek - RTL8153B |
|
| Industry Standards | USB 3.2 Gen 2 - Backwards compatible with USB 3.0, 2.0, and 1.1 | |
| Interface | USB 3.1 Gen 2 | |
| Ports | 3 | |
| USB Pass-Through | Yes | |
| USB-C Device Port(s) | Yes | |
| USB-C Host Connection | Yes | |
| PERFORMANCE | ||
| Auto MDIX | Yes | |
| Compatible Networks | 10/100/1000 Mbps | |
| Full Duplex Support | Yes | |
| Maximum Data Transfer Rate | 10 Gbps | |
| Port Multiplier | Yes | |
| Supported Charging Modes | Charging Downstream Port (CDP) | |
| Dedicated Charging Port (DCP) | ||
| Supported Charging Outputs | BC 1.2 (1.5A) | |
| Apple 1A | ||
| Apple 2.4A | ||
| Type and Rate | USB 3.1 Gen 2 - 10 Gbit/s | |
| UASP Support | Yes | |
| CONNECTOR(S) | ||
| Connector Type(s) | 1 - USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps) Receptacle | |
| 1 - USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps) Receptacle | ||
| 2 - USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps) Receptacle | ||
| 1 - RJ-45 Receptacle | ||
| SOFTWARE | ||
| OS Compatibility | Windows® 10 (32/64 bit) Windows® 8.1 (32/64bit) Windows® 7 (32/64bit) Windows® Server 2008 R2 Windows® Server 2012(32/64bit) Windows® Server 2016 Windows® Server 2019 Mac OS 10.10-10.15 Linux Kernel 4.x LTS and up Ubuntu 14.x LTS - 19.x LTS iPadOS 13.1 and up Chrome OS 61.x and up Android OS 8.x and up |
|
| INDICATORS | ||
| LED Indicators | 1 - Green - Power and Link Indicator | |
| POWER | ||
| Center Tip Polarity | Positive | |
| Input Current | 0.8A | |
| Input Voltage | 110V-240V AC | |
| Output Current | 2A | |
| Output Voltage | 12V DC | |
| Plug Type | M | |
| Power Consumption (In Watts) | 24W | |
| Power Source | AC Adapter Included | |
| ENVIRONMENTAL | ||
| Humidity | 0% to 95% (non-condensing) at 25°C | |
| Operating Temperature | 0 to 50°C | |
| Storage Temperature | -20 to 70°C | |
| PHYSICAL CHARACTERISTICS | ||
| Cable Length | 3.3 ft [1 m] | |
| Color | Black & Space Gray | |
| Form Factor | Desktop | |
| Material | Aluminum and Plastic | |
| Product Height | 25.000 | |
| Product Length | 3.9 in [10 cm] | |
| Product Width | 60.000 | |
| Weight of Product | 3.1 oz [87 g] | |
| PACKAGING INFORMATION | ||
| Package Height | 51.000 | |
| Package Length | 149.000 | |
| Package Width | 213.000 | |
| Shipping (Package) Weight | 1 lb [0.5 kg] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - USB-C Hub | |
| 1 - Universal Power Adapter | ||
| 4 - Power Adapter Clips (NA/JP, UK, EU, ANZ) | ||
| 1 - USB-C Host Cable (1 m) | ||
