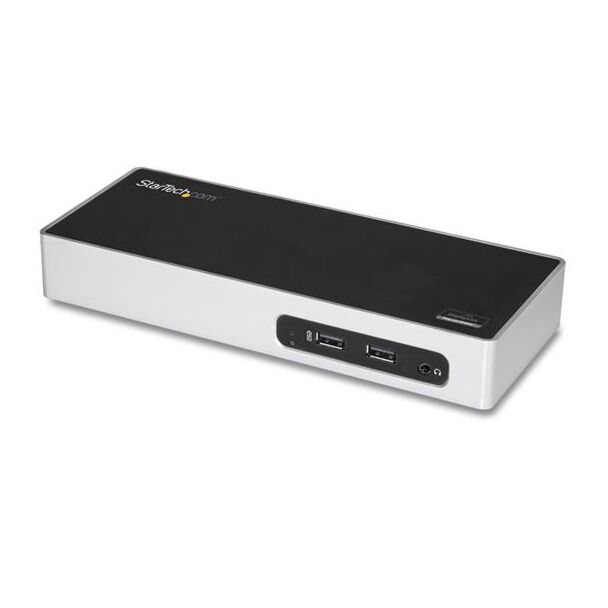

StarTech DK30ADD Dual Monitor Docking Station - HDMI and DVI / VGA - USB 3.0

This USB 3.0 docking station for Mac and Windows™ laptops gives you display flexibility and the ports you need to maximize workstation performance. The cost-effective dual-monitor docking station provides many video output options including HDMI®, DVI and VGA (with adapter), and gives you six USB ports for peripherals, including two fast-charge USB ports.   Enhance Productivity with Dual Video The USB 3.0 dock expands the display capabilities of your Mac or Windows laptop. Set up dual displays by connecting to one HDMI and one DVI monitor. Plus, the laptop docking station includes a DVI to VGA adapter, so you can connect to a legacy VGA monitor.  With the dual-monitor dock, you can connect:

• 1x HDMI display + 1x DVI display at 2048 x 1152 resolution @ 60Hz
• 1x HDMI display at 2048 x 1152 resolution + 1x VGA display at 1920 x 1200 resolution @ 60Hz

All the Connections You Need Transform your laptop into a fully capable workstation. This USB 3.0 dock provides six USB 3.0 (Type-A) ports so you can easily connect your keyboard, external drives and other peripherals, from the single USB 3.0 host connection. Two of the USB 3.0 ports are always-on fast-charge ports, adding charge-and-sync flexibility for up to two mobile devices. The docking station also provides a Gigabit Ethernet port plus a 3.5 mm audio headphone port. DK30ADD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Specification

Connector(s)
Connector Type(s)	3.5 mm Mini-Jack (3 Position) Female
	DVI-I (29 pin) Female
	HDMI (19 pin) Female
	RJ-45 Female
	USB 3.0 A (Fast-Charge, 9 pin) Female
	USB Type-A (9 pin) USB 3.0 Female
	USB Type-B (9 pin) USB 3.0 Female
Environmental
Humidity	10-90% non-condensing
Operating Temperature	0 C to 40 C (32 F to 104 F)
Storage Temperature	-10 C to 70 C (14 F to 158 F)
Hardware
4K Support	No
Bus Type	USB 3.0
Chipset ID	DisplayLink - DL-3900 VIA/VLI - VL813
Displays Supported	2
Fast-Charge Port(s)	Yes
Industry Standards	USB Battery Charging Specification Rev. 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0/1.1
Interface	USB 3.0
Indicators
LED Indicators	Power
Packaging Information
Package Height	60 mm [2.4 in]
Package Length	30.7 cm [12.1 in]
Package Width	14 cm [5.5 in]
Shipping (Package) Weight	815 g [28.8 oz]
Performance
Auto MDIX	Yes
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions	Dual displays - HDMI + DVI - 2048 x 1152 @ 60Hz Dual displays - HDMI 2048 x 1152 + VGA 1920 x 1200 @ 60Hz
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Physical Characteristics
Cable Length	1000 mm [39.4 in]
Color	Black & Silver
Enclosure Type	Plastic
Product Height	3.1 cm [1.2 in]
Product Length	21.6 cm [8.5 in]
Product Width	86.2 mm [3.4 in]
Weight of Product	291 g [10.3 oz]
Power
Center Tip Polarity	Positive
Input Current	1 A
Input Voltage	100 - 240 AC
Output Current	2 A
Output Voltage	20V DC
Plug Type	N
Power Consumption (In Watts)	40W
Power Source	AC Adapter Included
Prominence
Description CDW 75 - 1st Line	StarTech.com Dual Monitor USB 3.0 Dock - Mac and Windows - 6x USB 3.0
Software
OS Compatibility	Windows« 7, 8, 8.1, 10 macOS 10.10 - 10.12, 10.14
Special Notes / Requirements
Note	A DVI to VGA adapter is included.
	USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
System and Cable Requirements	A host laptop with an available USB-A port.
What's in the Box
Included in Package	docking station
	DVI to VGA adapter
	quick-start guide
	universal power adapter (NA/JP, UK, EU, ANZ)
	USB 3.0 cable
